Hydraulic Hose SAE 100R12

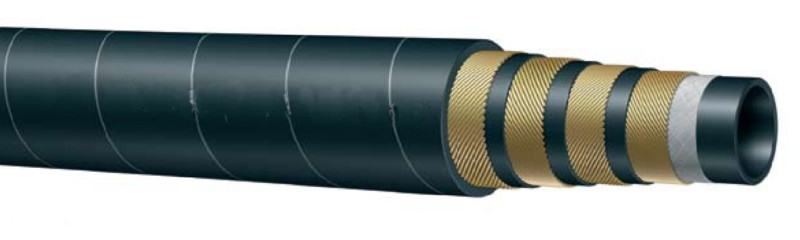

Hydraulic Hose SAE 100R12 is a kinds of Heavy duty, high impulse, four spiral steel wire reinforced, rubber covered hydraulic hose

Tube: oil resistant synthetic rubber;

Reinforcement: four spiral plies of steel wire wrapped in alternating directions;

Cover: oil and weather resistant synthetic rubber.

Temperature:-40℃.to +121℃



Hose ID

Wire OD

Hose OD

Working Pressure

Burst Pressure

Minimum bend radius

Weight

inch

mm

mm

mm

Mpa

Psi

Mpa

Psi

mm

Kg/m

3/8

9.5

17.2

20.3

27.5

4000

110

16000

125

0.65

1/2

12.7

20.7

23.8

27.5

4000

110

16000

180

0.85

5/8

15.9

24.6

27.4

27.5

4000

110

16000

200

1.3

3/4

19.0

27.7

30.7

27.5

4000

110

16000

240

1.5

1

25.4

34.9

38

27.5

4000

110

16000

300

2.0

1-1/4

31.8

43.9

47

20.7

3000

82.8

12000

420

2.9

1-1/2

38.1

50.4

53.5

17.2

2500

68.8

10000

500

3.3

2

50.8

63.7

66.7

17.2

2500

68.8

10000

630

4.9
